HVT Pressure Relief Valve Type 100
Performance data
Maximum pressure 350 bar
Valve size D < 15mm
Opening pressure 20 - 350 bar, adjustable or permanently set
Flow < 25 l/min @ 10 bar delta
Internal leakage < 1 ml/min
HVT Druckbegrenzungsventil Typ 100

Pressure Relief Valve

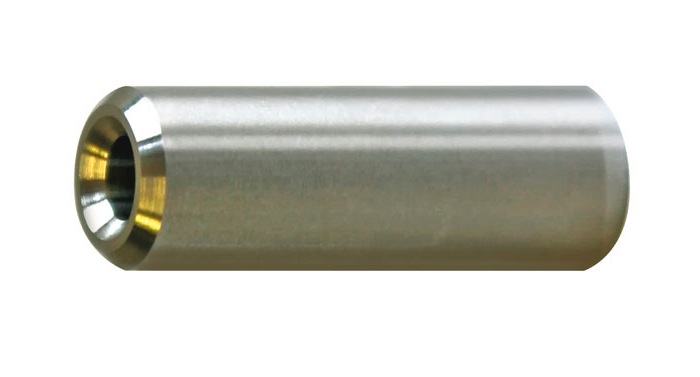

This pressure control valve is ideal for virtually all applications in hydraulics and pneumatics thanks to its robust design and construction. The control valve is a preassembled spring-loaded valve designed to limit/hold the pressure in hydraulic systems. The valve is supplied ready for insertion (cartridge) without any mounting and/or sealing elements.


All components in contact with media are manufactured of stainless steel. The steel-on-steel valve seat seal design guarantees a long service life.

Other versions available on request.
